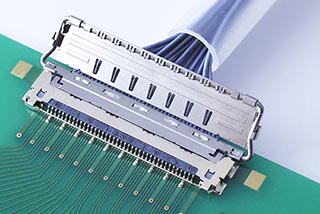

产品分类：Micro-Coax Cable ASSY
Technical Specifications:

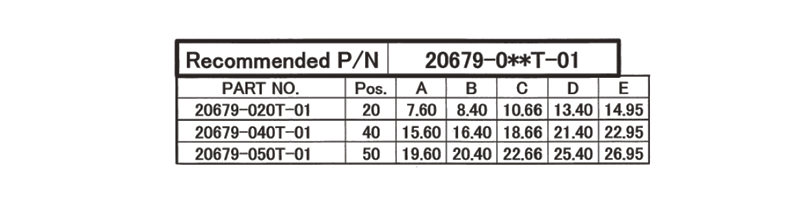

1. Plug P/N: 20680-0**T-01；Set P/N:20679-0**T-01
2. 0.4mm Pitch, Fully Shielded，High-Data-Rate Transfer(20Gbps)
3. Number of Position: 20P, 40P，50P
4. Mating Height: 1.1mm Max
5. Applicable Cable: Micro Coax AWG#40,#42,#44
6. Rated Voltage: 100V AC
7. Rated Current: 0.3A AC/DC[AWG#40],0.24A AC/DC[AWG#42],0.10A AC/DC[AWG#44]
8. Withstand Voltage: AC 250V(rms)
9. Insulation Resistance: Initial 1000MΩ MIN./DC500V; After testing 500MΩ MIN./DC500V
10.Operating Temperature:-40℃ - +85℃
11.Mating Receptacle: I-PEX 20682-0**E-02
